MIT 4.s02: Information Design

Last month, all of us here at Fathom were busy wrapping up 2016’s projects, not the least of which was our second consecutive semester teaching Information Design: Exploration, Navigation, and Understanding.

In its final incarnation before being integrated into MIT’s D-Minor curriculum as a required course, the Fall 2016 section was taught as a graduate workshop. Just like last semester, we had a diverse group of students from the Media Lab, Computer Science Department, SA+P, and the Sloan School of Management, and we divided the semester into four main projects, each of which covered a different aspect of the subject material:

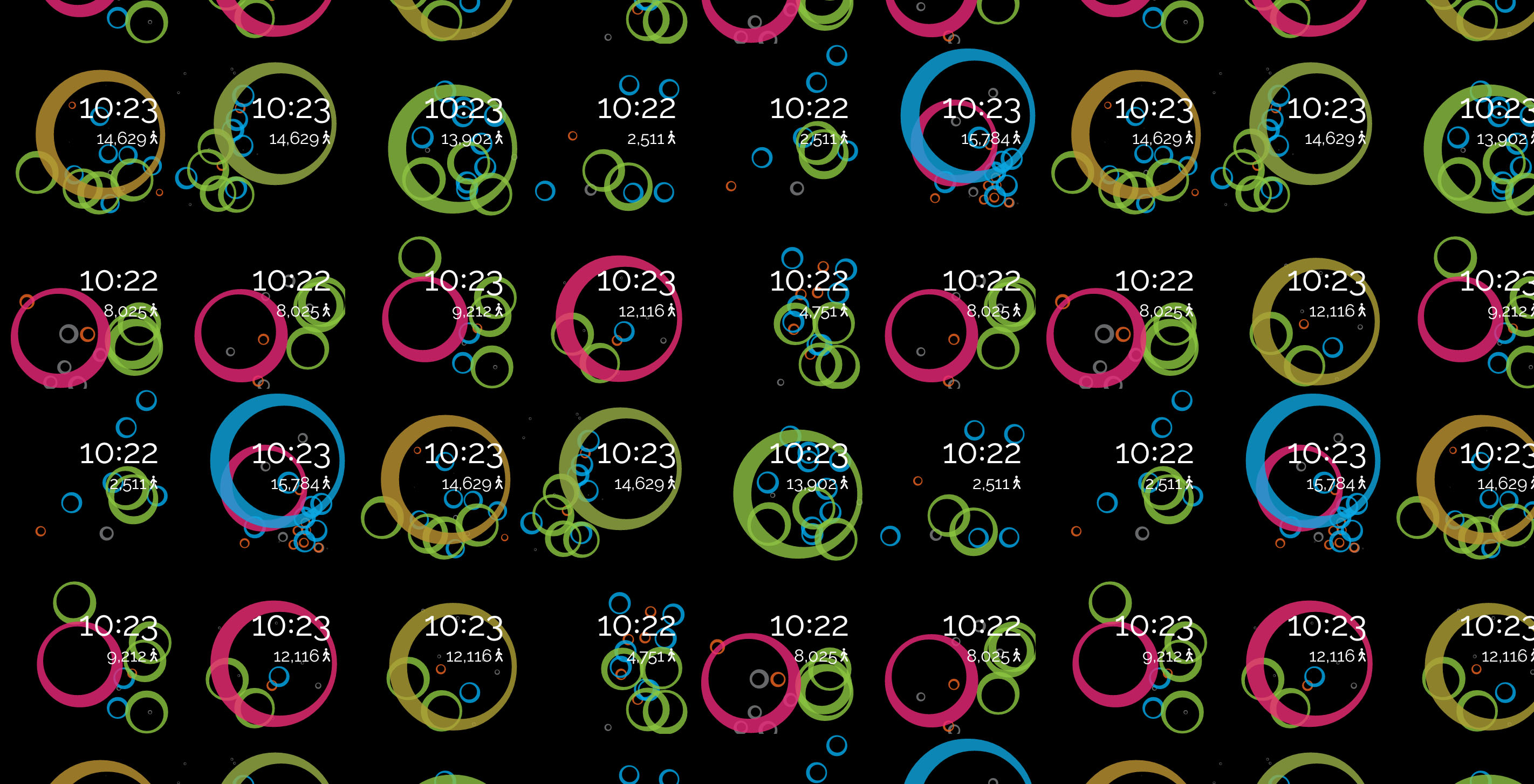

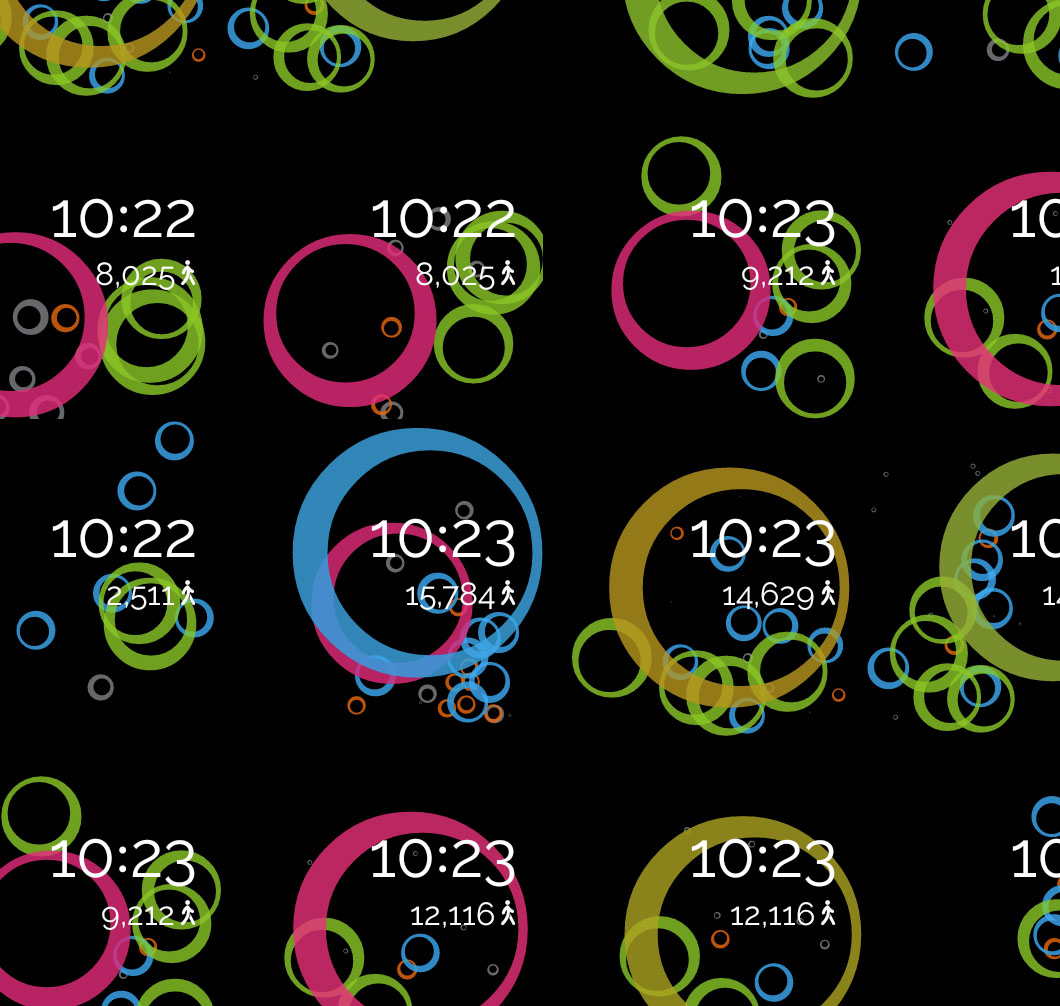

  • introduction to design and p5.js with clock faces
  • context of use with a weather application for mobile
  • finding a story within census data
  • tying everything together with a “choose your own adventure” final project

These assignments run the gamut from very directed at the beginning of the semester to very open-ended at the end of the semester. The census and final projects consistently reveal that some students thrive in the open-ended environment, while others struggle to find direction and manage their time. However, regardless of their learning style, all students deserve the support they need to learn effectively, so this Fall we began exploring different ways of guiding the students through the course and projects. Although the final deliverable for each of the assignments was largely the same as last semester, we directed the students in a different way. This provided them with a bit more support, and gave us the opportunity to focus on the didactic qualities of process and iteration. To demonstrate, here’s the evolution of one student’s final project, from conception to completion over the course of six weeks.

Xinhui Li (final project)
Xinhui Li (final project)

During the first week, Xinhui Li, along with the other students in the class, settled on a project idea and story. This semester, we asked the students to identify four candidate datasets that they would like to use, one for each of the following categories:

  • Personal: some type of personal data that you’ve collected
  • Research/class: information design questions around your research, other classes, or thesis
  • Explanation: a complex idea that’s data-centric, and make sense of it
  • Curiosity: finding a data set that you think is interesting, and telling us a story about it or providing people with a way to explore it

This helped students fully consider the story that their final project would ultimately tell, without becoming overwhelmed by the coding challenges. Xinhui suggested using her Hubway activity for the Personal dataset, land reclamation projects in China for the Research dataset, topics surrounding national unemployment in the US for her Explanation dataset, and transportation habits in a sharing economy for her Curiosity dataset. After presenting her ideas and gauging interest from the other students and instructors, she decided to pursue the topic of land reclamation in China.

Once students had decided on an idea, they were given a week to collect and parse data. Data parsing is a challenging, but extremely important, aspect of information design, and we again wanted students to focus on this crucial stage of their project without being distracted or overwhelmed by the other stages. Xinhui’s first p5.js sketch didn’t actually draw on the canvas at all. Rather, it printed to the console to demonstrate that her program could load and internally represent the data she wanted to use.

XinhuiParse

The next two weeks were spent creating an initial visual representation of the data. At this point, we asked students to provide paper sketches alongside their code, to encourage them to occasionally step away from the computer and consider the overall design and ultimate goal of their final project. After Xinhui sketched out her visual ideas on paper, she had a template she could follow to guide the layout of her first p5.js sketch that used the canvas.

The initial representation demonstrated Xinhui’s ability to incorporate the map, data, and icons that she had gathered for her project, but there were a lot more refinements that could be made in the two weeks before the assignment was due. At this point, we began to shift our focus toward design and interactivity, helping students refine and iterate on their initial representations.

Xinhui’s second design iteration implemented the timeline that she had drawn in her paper sketches, added a title to give the piece some context, and changed the scroll behavior so that the map always remains visible in the browser window.

For her third iteration, she implemented more of the functionality from her paper sketches, adding satellite images and detailed information about each item in the list. Demonstrating her understanding of hierarchy in information design, she designed the list items to be expandable and collapsable, so that the user only sees detailed information when it’s relevant. She also included a legend that reveals at a glance the intended uses of the various land reclamation sites.

XinhuiFinal3

Between the third and fourth iterations, Xinhui implemented animated transitions to further refine the user experience, redesigned her legend so that it makes better use of the space she has available, added a description of her project beneath the title, and made the list sortable so that users can browse the data more easily.

You can see Xinhui’s final project here, and a gallery of student projects here.

k
Translating Visual Ideas Into Language

Fall is here, and the Fathom office is back in full swing teaching its second semester of “Information Design: Exploration, Navigation, and Understanding.” In the spirit of the very process we teach, we took a chance this summer to do some self-reflection as instructors, iterate and refine our ideas, and update a few assignments, lectures, and activities to make the course even more engaging and informative for the students.

One of our most recent lectures involved a hands-on activity in sketching and iteration, with an emphasis on algorithmic thinking and its considerations. The instructions for the activity will probably sound familiar:

  • Students have three minutes to sketch a picture of the house they grew up in, then five minutes to write a set of instructions that another student can use to reproduce their drawing.
  • After trading instructions with another person in the class, they have three minutes to draw someone else’s house, using the instructions they received.
  • Then, they repeat the entire process. The time limits are the same, the prompt is the same; the only difference now is that the students know that they’re going to have to write instructions for the picture they sketch.

In a popular variation of this activity— commonly referred to as the “Peanut Butter and Jelly Exercise”— a group is asked to create a set of instructions for making a peanut butter and jelly sandwich, and then someone follows the instructions as literally as possible, often with hilarious results.

Photo Credit: https://mindstorms.dreschallenges.com/

Its relevance to computer science and programming is obvious, but it’s also a fun, easy, and memorable way to demonstrate effective communication, specificity in language, and the dangers of assumption, in fields ranging from construction management to philosophy. But, it stops just short of one additional important lesson, especially when teaching programming as a tool for design.

Here’s an example of the sketches from the first part of the activity we did in class:

A student first drew the image on the left (1a), then was asked to write a set of instructions (1b) to recreate that image. A different student used those instructions to produce the drawing on the right (1c). Unsurprisingly, because the student wasn’t expecting to deconstruct the first sketch into simple, reproducible steps, the left and right images look pretty different.

The second time around, the student sketched the same house (14a), but in a way that was better suited to being systematically described (14b) and reproduced (14c), and to great effect. The drawings on the left and right look much more similar this time. The crux of the lesson, though, comes when comparing the original drawings from the first and second parts of the activity.

The first drawing (1a) shows a home with a curved, corrugated roof, plants, and a courtyard with a pool. By contrast, the second drawing (14a) shows a much more technical view of the same house with no textures, few details, and only straight lines. It may be easier to write instructions for the second drawing, but that comes at the expense of the subjective qualities that make it unique and interesting.

Here’s another example.

Between the first (7a) and second (21a) round of drawings, the house loses its bricks, the driveway and bushes out front, and other details that make it personal to the artist.

This may be the most striking example— the first (8a) and second (22a) round of drawings look like they were done by two different people.

It comes as no surprise that in order to leverage the power of computation in design, we must find a way to describe visual representations of our ideas with a vocabulary that is both complete and unambiguous. The main point of this sketching activity is that people will commonly, without even realizing it, sacrifice many of the more subtle, individual, and appealing aspects of their visual ideas in order to match an existing vocabulary. Instead, we should be doing the opposite. Developing a personal language that is still complete and unambiguous, but better suited for describing our creative, individual ideas, is a big step towards using programming as a tool to push design further, rather than constrain it.
